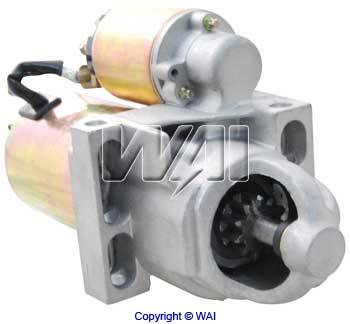

Diagonal Mount Mini High Torque Starter w/168 Tooth Flywheel

100% new high performance retrofit.  Upgrade the old, heavy 9-tooth, 10MT design to a high output, lightweight, 11-tooth PG260L starter.  Ideal for hi-performance, marine and street rod applications.  4-terminal solenoid w/relay and switch terminals.  Smaller and lighter, 7.7lbs.  Field case assemblies are 100% tested on a computerized gaussmeter to measure magnet strength and position.  Zinc plated field case, solenoid, C.E. cover and hardware.  Armatures are precision balanced and feature banded hairpins.  Commutators are stake-welded and polished for longer brush life.  Starter, drive and solenoid are endurance tested.

NOTE: New mounting bolts are required.



Used on Chevrolet 1969-81 and GMC 1970-81.

Replaces DELCO: 10496874, 1108427, 1108428, 1108429, 1108430, 1108480, 1108502, 1108513, 1108745, 1108746, 1108747, 1108748, 1108776, 1108778, 1108779, 1108780, 1108781, 1108782, 1108796, 1108798, 1109025, 1109036, 1109052, 1109056, 1109057, 1109064, 1109065, 1109066, 1109068, 1876555, 19136131, 19136133, 1988603, 1998211, 1998215, 1998216, 1998217, 1998220, 1998221, 1998222, 1998223, 88863065
