Drop Pitman Arm w/Crossover Steering, 69-91 Blazer

Drop Pitman Arm w/Crossover Steering, 69-91 Blazer

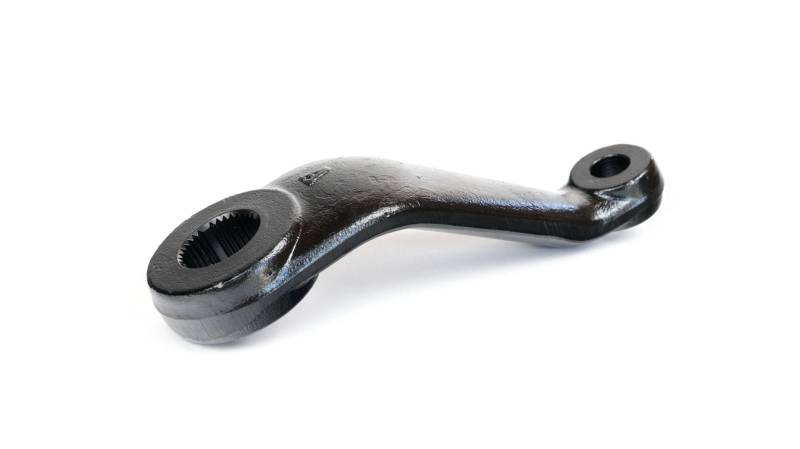

This is the arm attached to the steering box shaft.

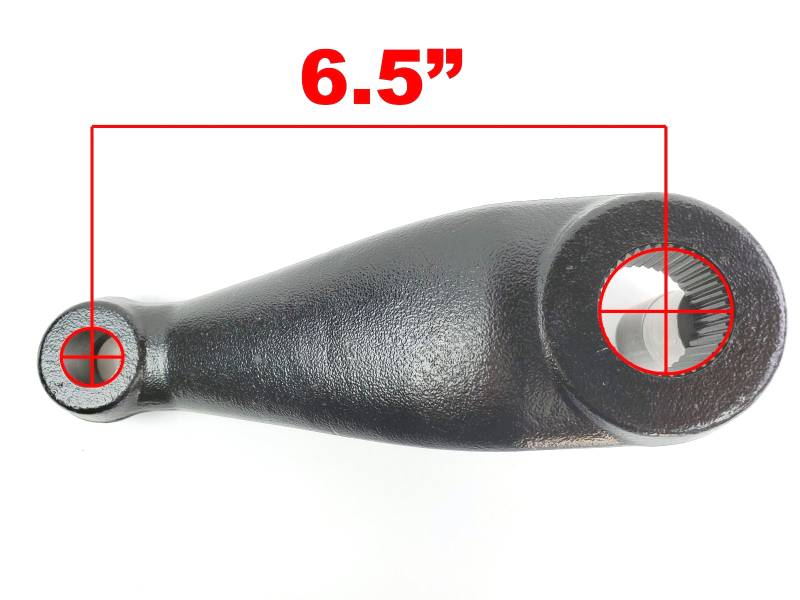

6-1/2" Hole to hole.

No index splines.

Fits full spline Saginaw power steering boxes.

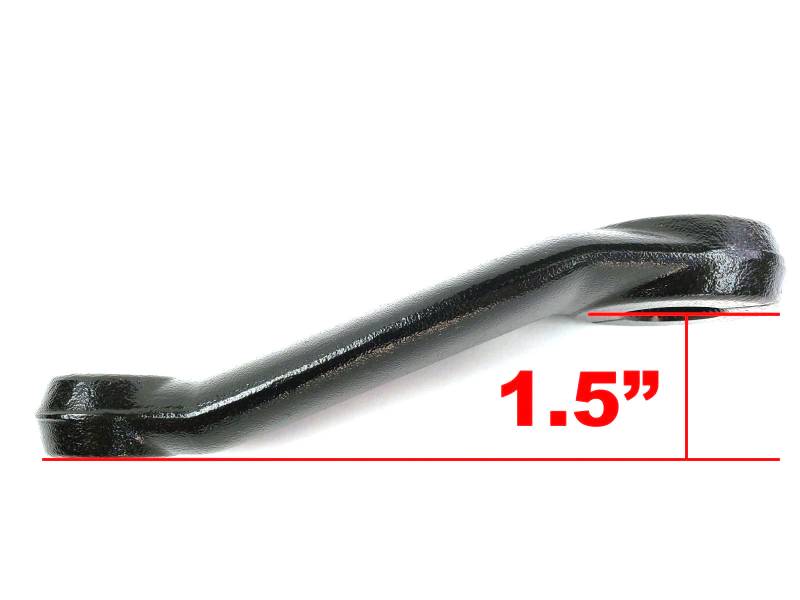

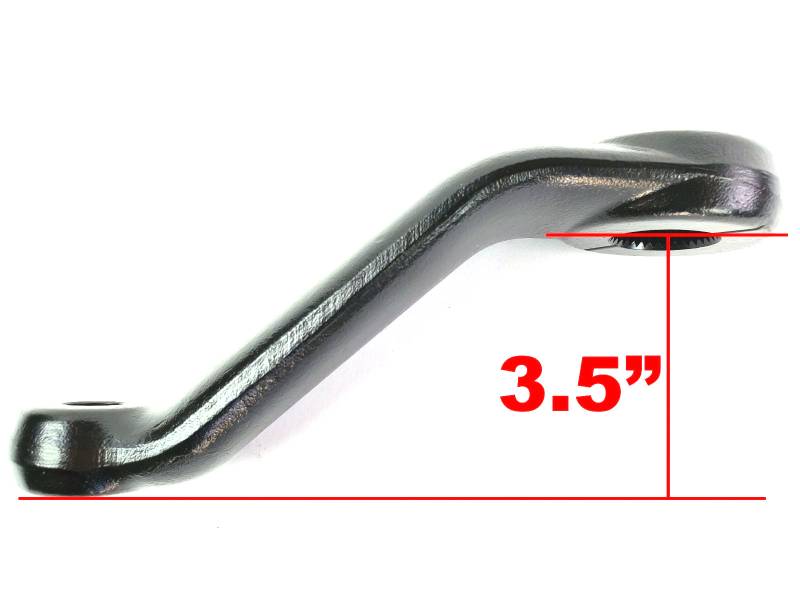

The high clearance pitman arm is designed to hug the frame as close as possible. Sometimes the end needs to be trimmed down to clear the frame. This can be done with a cuttoff wheel. If you have the steering box frame plate it may require more trimming.

Do you know what taper you have?

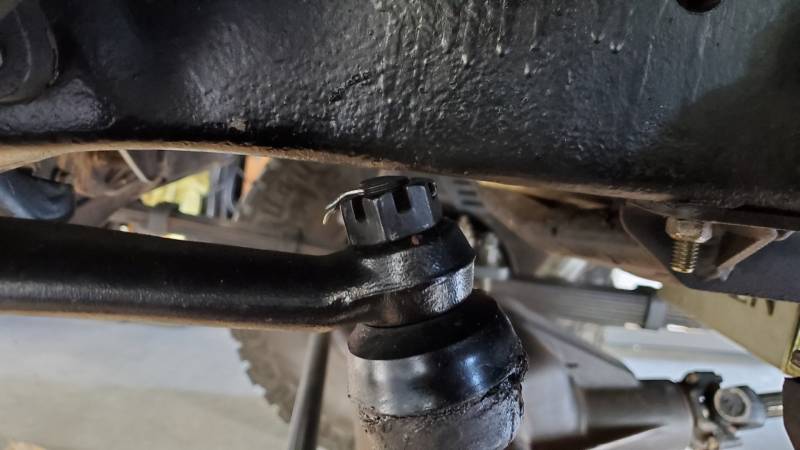

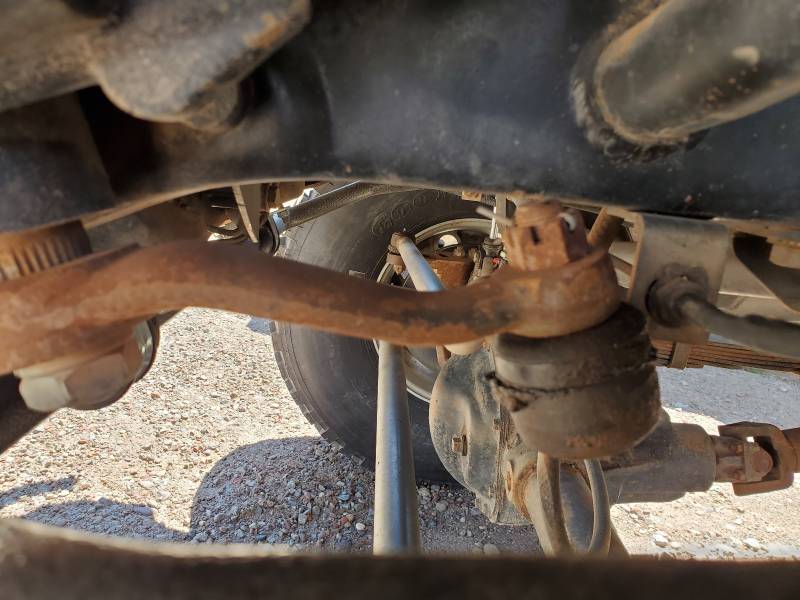

On our kits we like to use the Tie rod end taper ends because they are stronger and can handle angles better. Not all crossover kit use this end and may have Drag link end taper. Both ends are considered "GM 1 Ton" but mismatching the two can lead to unsafe use.

The way to find out what taper you have is to measure with a caliper. It can be difficult to read since it is a taper but themeasurement does not need to be precise, just close to these readings:

TRE taper .660” small side .755” large side
DLE taper .700” small side .787” large side
