NP241 Slip Yoke Eliminator Kit

NP241's are a common GM transfer case used in 1989 and newer GM trucks. Their main downfall is the slip yoke rear output which is not desirable on lifted trucks.

This kit converts your GM NP241 to a bolt on (fixed style) yoke. Uses common 32 spline yokes (same as NP205), though the yokes needed to be shortened 1/4".

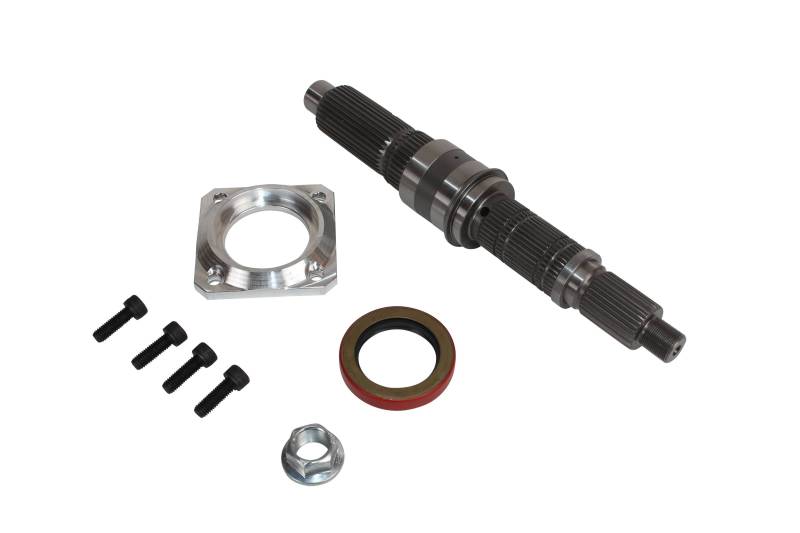

Includes new fixed yoke style main shaft, bearing/seal retainer w/seal, spacer, bolts for retainer and nut for yoke.

You will need to shorten the yoke (NP205 Non-CV) .25" for use with our SYE.

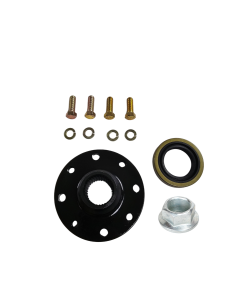

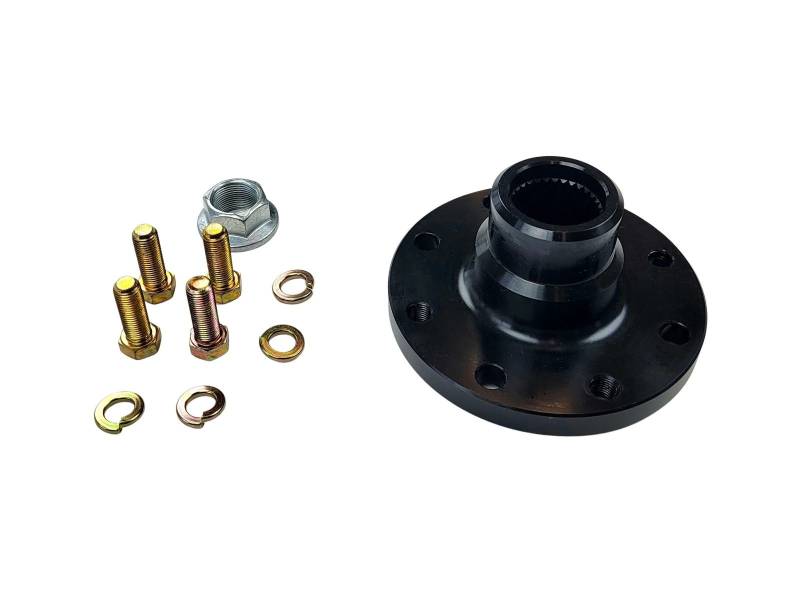

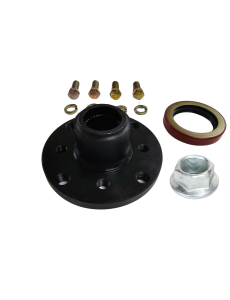

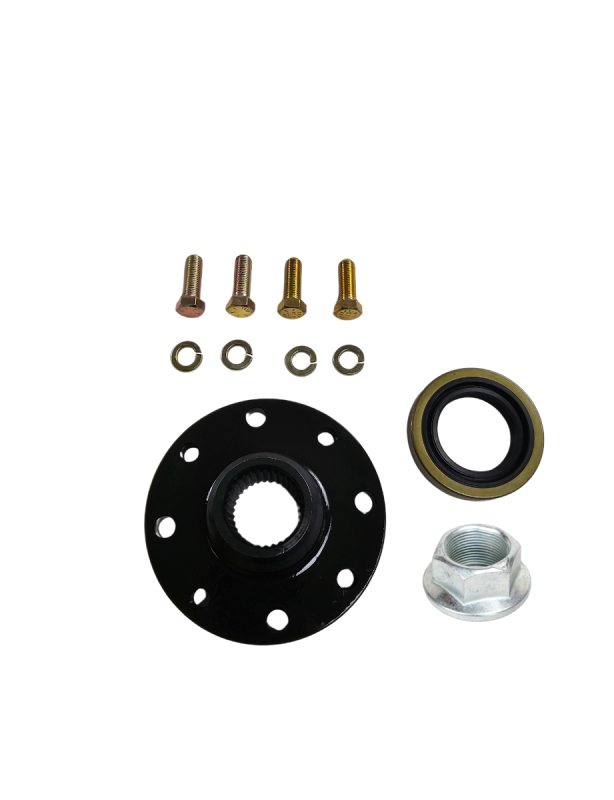

OPTIONAL CV FLANGES

1350 CV flange
3-1/8" pilot
32 spline
Fits GM Saginaw 3R type driveshafts
Includes nut
1.875" Seal surface diameter, this is factory Dodge front output size so replacement seal would be a factory Dodge 205 application.
5.25" OD
3" Square bolt pattern

OR
