Aluminum Fuel Tank, LT, 69-72 Blazer

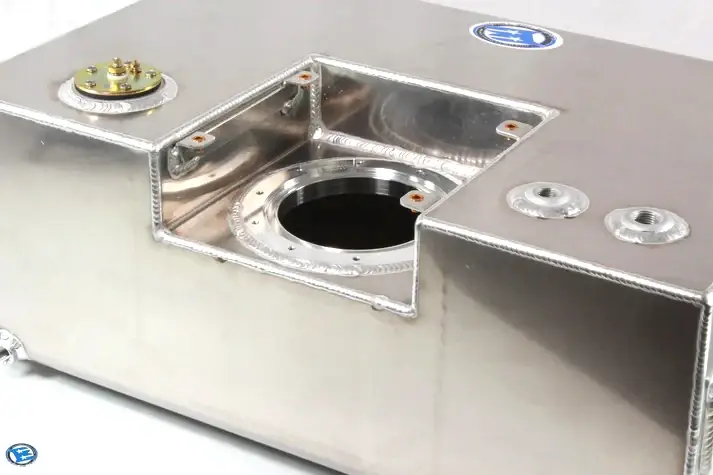

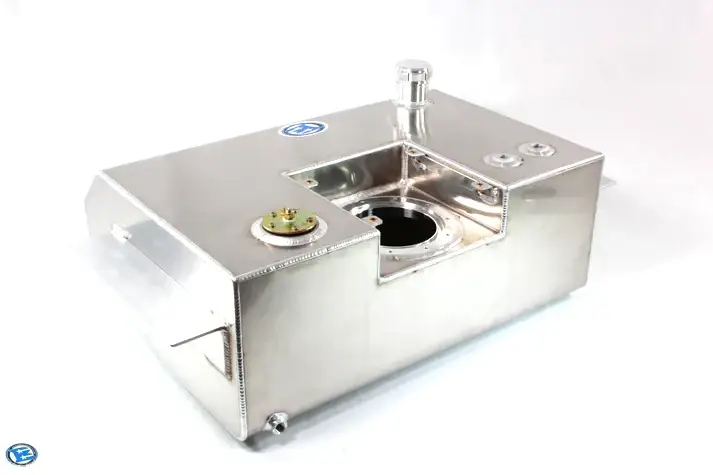

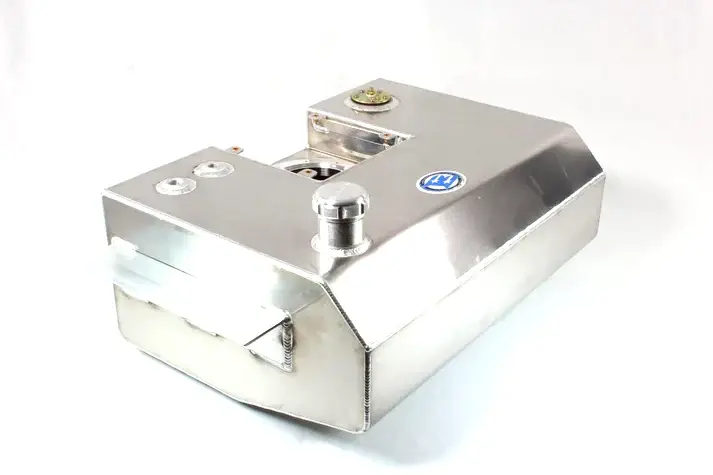

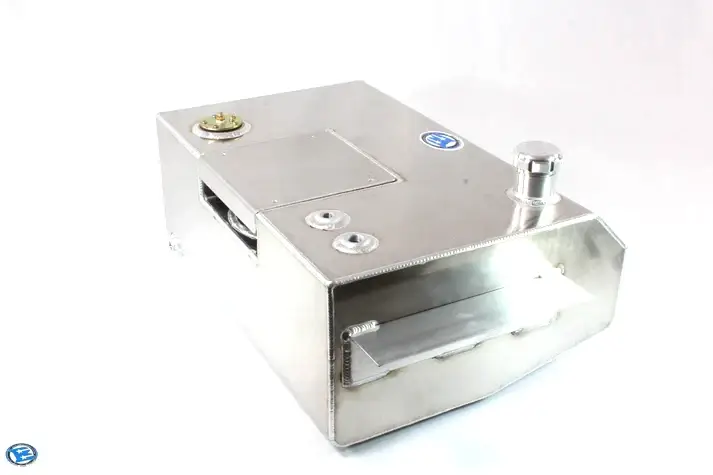

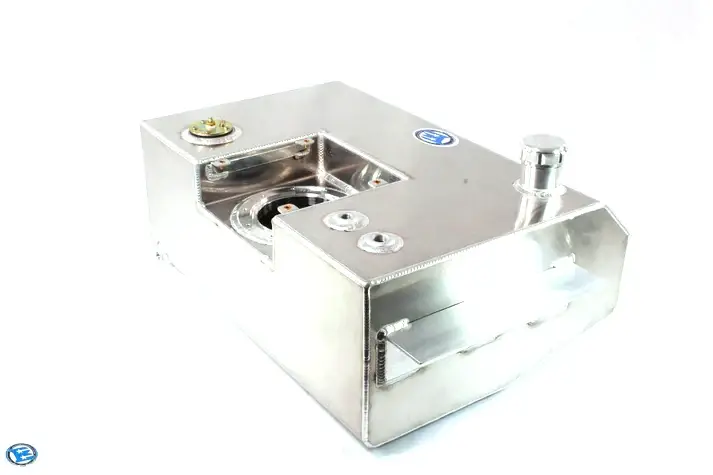

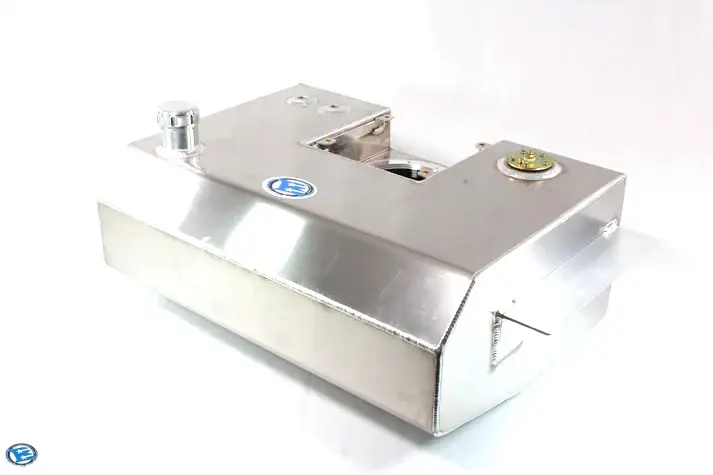

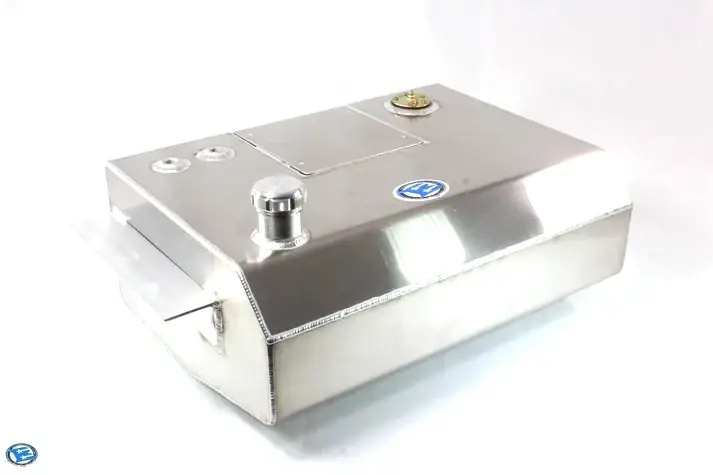

* Pictures show Rollover Safety Vent and Sending Unit Options installed.


*Please Note: Tanks are custom made to order and typically take 30 days to receive.

* Pictures show Rollover Safety Vent and Sending Unit Options installed.

-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- CNC Machined Non Vented / Threaded Cap or side fill depending on options chosen
- 1/2" NPT Vent
- 3/8" NPT Return
- 3 Baffles
- This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly. (NOT INCLUDED) this pump has proven to be very reliable and will run pretty much any LS or Coyote engine.

Note: This tank will ONLY work with the MU2101 pump assembly.

- It is not possible to use the OEM fuel level sensor that is supplied with the pump module. Since the tank height is different from stock and is custom built into a pocket the sensor float will hit baffling and will not read the fuel level properly.

*2021 REVISION - 3/8" NPT DRAIN REMOVED.

*** Original fuel tank filler neck mounted to inner 1/4 panel must have the last bend closest to the fuel tank cut off. This will allow you to run a 1.5" ID straight rubber fuel hose from filler neck on truck to fuel neck on tank. ***
