Holley Sniper Fuel Pump Module (Convert Factory Tank for EFI)

19-350
Holley Sniper Fuel Pump Module (Convert Factory Tank for EFI)
Pricing: $399.95
Qty:

Description

**Must cut 3.25" hole in top of tank, and also need part#12-161 extension to get to bottom of Blazer fuel tank**

340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

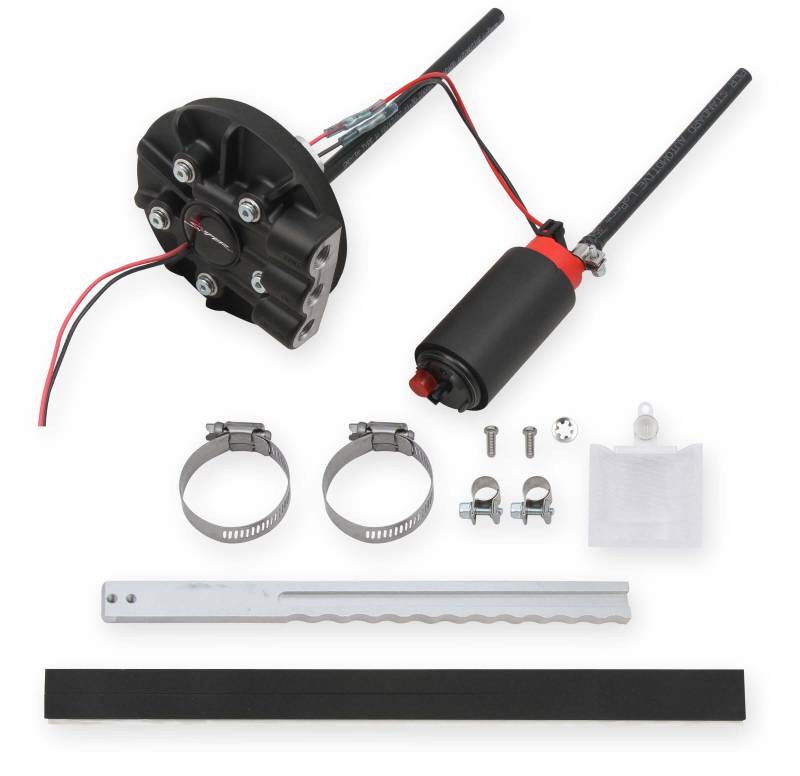

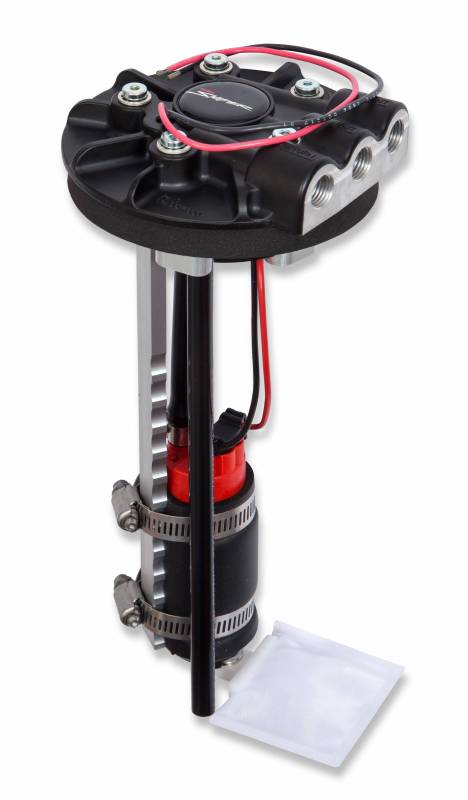

Holley/MSD is pleased to announce the release of Sniper Diecast Retrofit Fuel Pump Modules, which support up to 700 EFI horsepower or 900 carbureted horsepower and make it easy to affordably upgrade to EFI. Available in return and returnless versions, they convert your factory tank or fuel cell to an in-tank EFI fuel system. They're easy to install with basic hand tools and require no welding or fabrication whatsoever. Sniper Diecast Retrofit Fuel Pump Modules include a diecast pump-hanger bracket to control pump vibration in a low-profile design that's perfect wherever space is at a premium. They fit any fuel-tank depth from 7 to 12 inches and protrude only 1.275-inch above the tank-mounting surface to accommodate numerous applications. You can locate the 5 inch diameter module beside your existing sending unit anywhere in the tank and rotate it a full 360 degrees to work flawlessly with various plumbing and wiring configurations. Once the module is installed, all you need to do is connect your power-source/ground and fuel lines. Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

The easiest way to convert your vehicle to an in-tank, EFI fuel system
Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

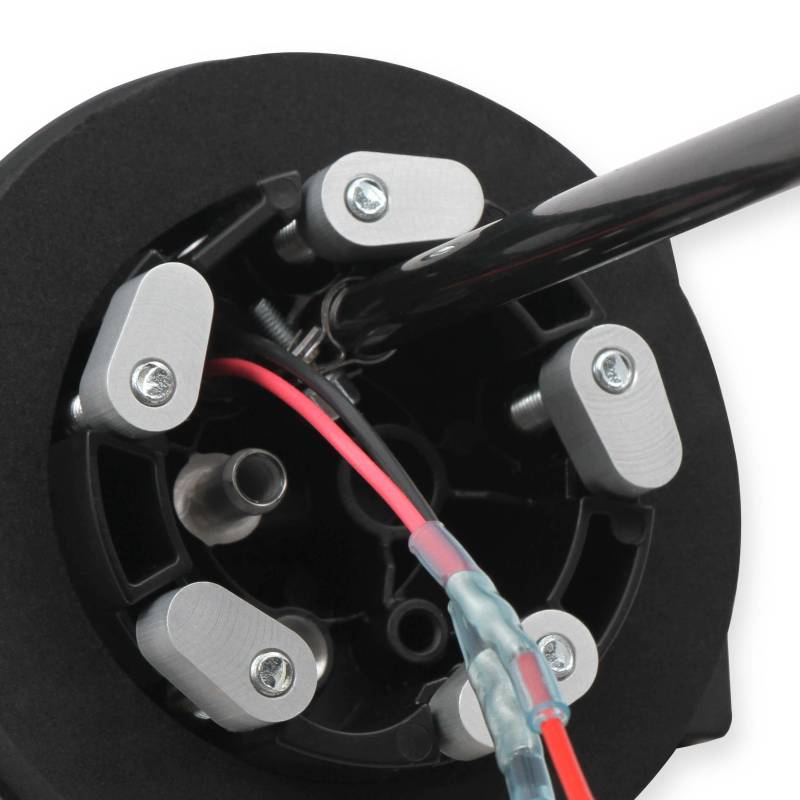

The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

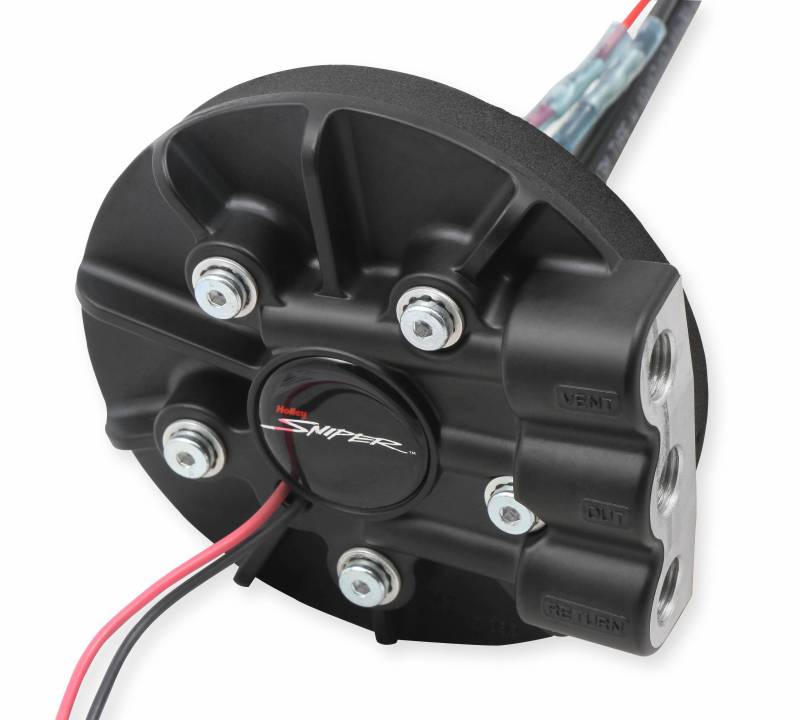

Die cast aluminum construction for corrosion resistance and long lasting good looks

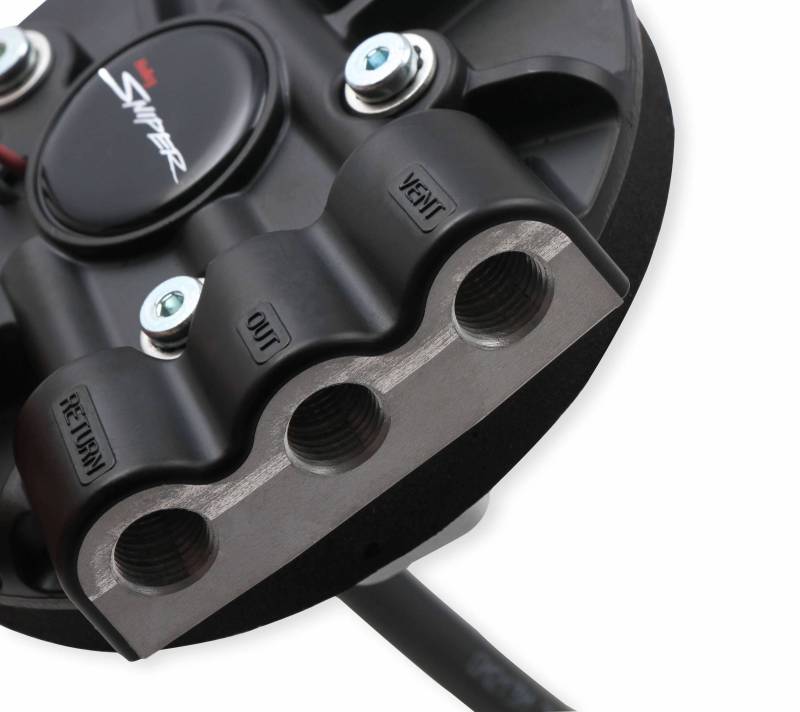

¼” NPT ports for a wide variety of plumbing options
Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion

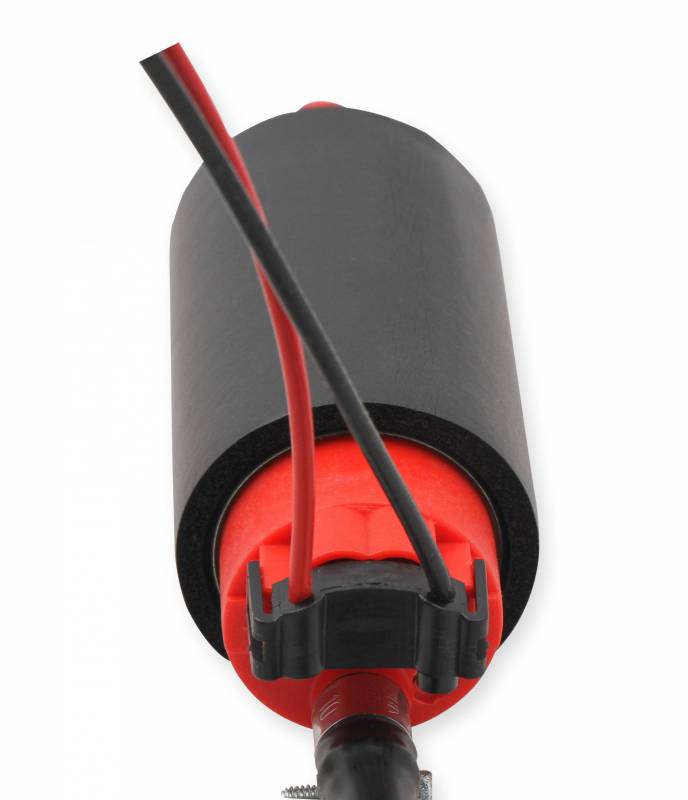

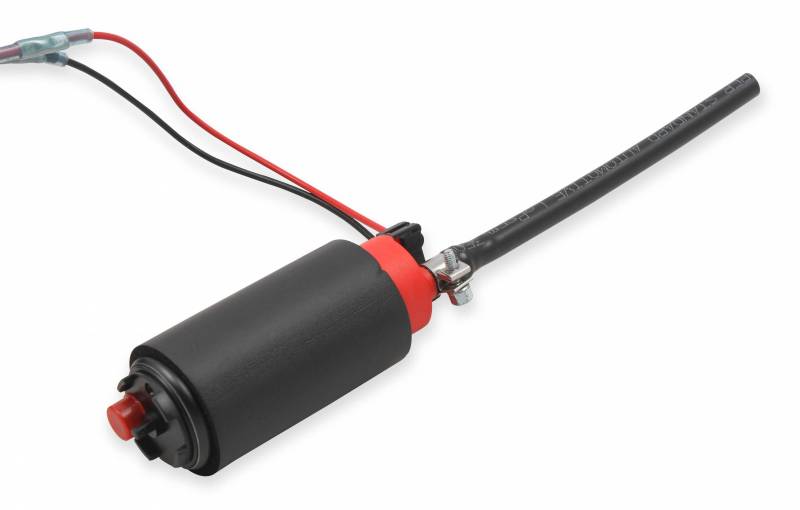

340LPH pump that is E85 compatible for both return and returnless style systems

Details

  • 19-350
  • 19-350
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.5 lbs.
  • W7.0000” x H7.0000” x L15.0000”
