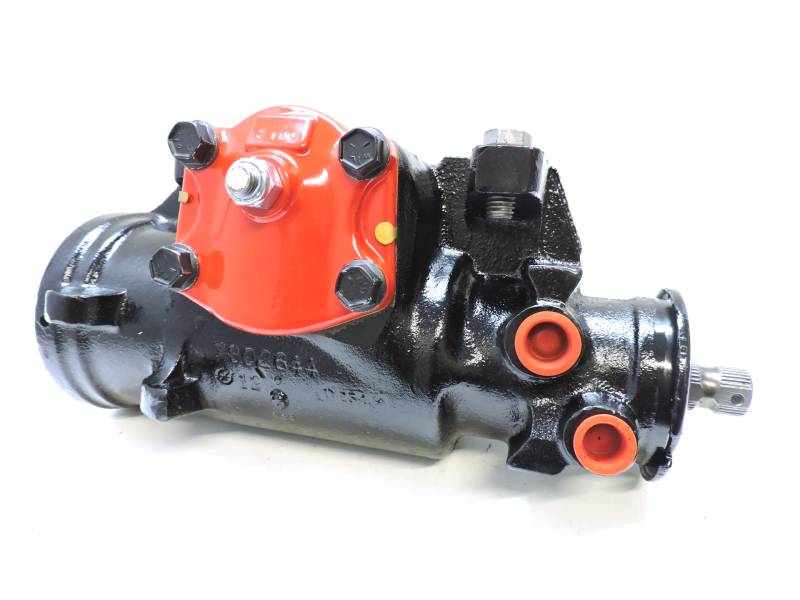

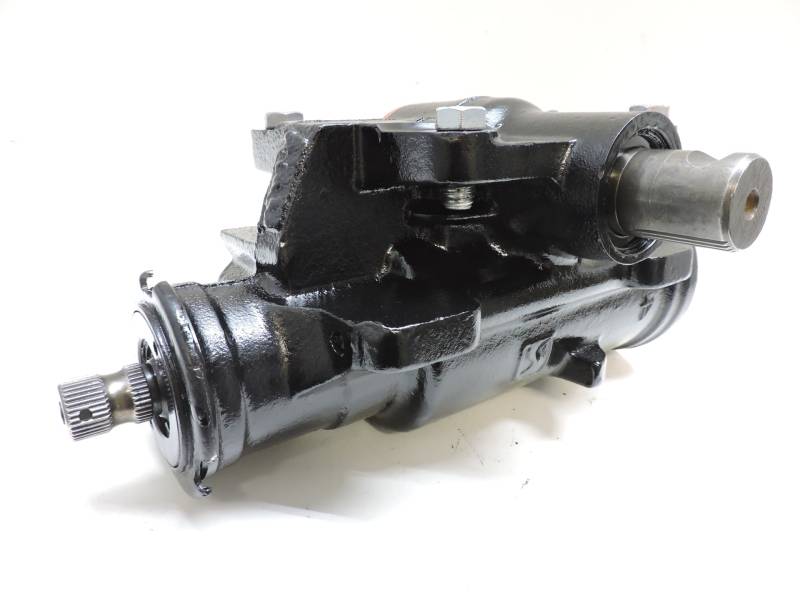

Red Head Steering Gear (4wd), 69-76 Blazer

2851
Red Head Steering Gear (4wd), 69-76 Blazer
Pricing: $406.00

Customize Your Item

- Core Charge -
 * required
- Hydro Assist Ports & Plugs -
 * required
Qty:

Description

Fits most 1968 – 1976 Chevy and Blazers 4WD. This steering gear has a large input shaft, large piston, NOTCHED SECTOR SHAFT (clamp style pitman arm) and flair fittings. If you have a sector (output) shaft that the pitman arm is held on with a nut and washer then you the 2WD steering gear, our part number 2850. You can either order this steering gear and change your pitman arm or you can order the 2850.

This gear comes stock as the 15:1 ratio (3 to 3.5 turns lock to lock). If you would the 18:1 ratio (4 – 4.5 turns lock to lock) please order 2851 4T.

Price is $296 + $300 refundable core charge + $85 shipping which will include shipping to you and a return label for your core steering gear.

Please Note: Conditional core charges will apply to sale price. Upon return of the core, charges will be refunded. Core must have matching input spline diameter or $50 deduction will be applied.

HYDRAULIC STEERING ASSIST PRE-TAPPED PORTS & PLUGS OPTION:
Red-Head offers a porting option for those that are either already running a hydraulic assist steering, or plan to in the future. If you choose to make this upgrade to the box (from the drop down menu), your gear box will come with two pre-drilled and tapped ports with plugs. For clarification, hydraulic assist is NOT something your vehicle would have come from the factory with, rather it is an upgrade that adds a hydraulic ram to the steering linkage to aid in steering. Most vehicles do NOT have this option, thus if you are unsure if you have it, you probably do not.
