Rear Power Tailgate Window Switch on Dash, 73-91 Blazer

Rear Power Tailgate Window Switch on Dash, 73-91 Blazer
Pricing: $29.99
5 5 1

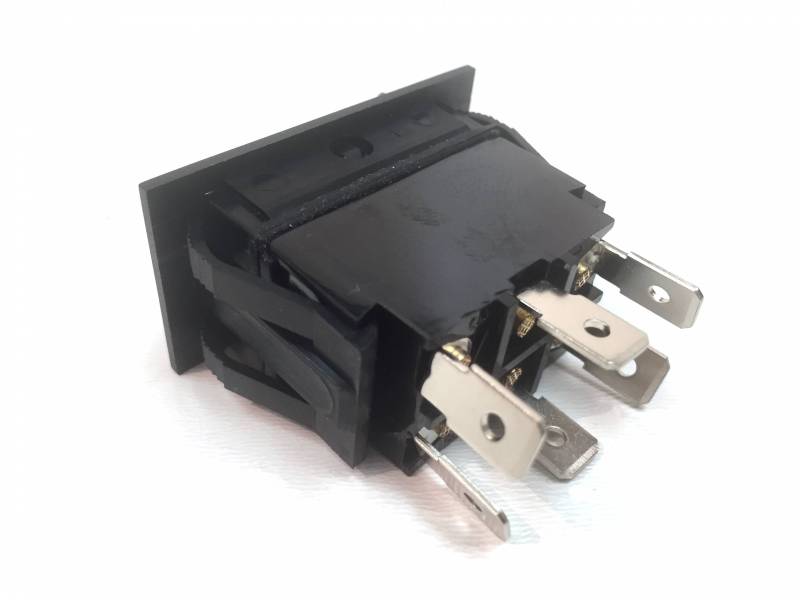

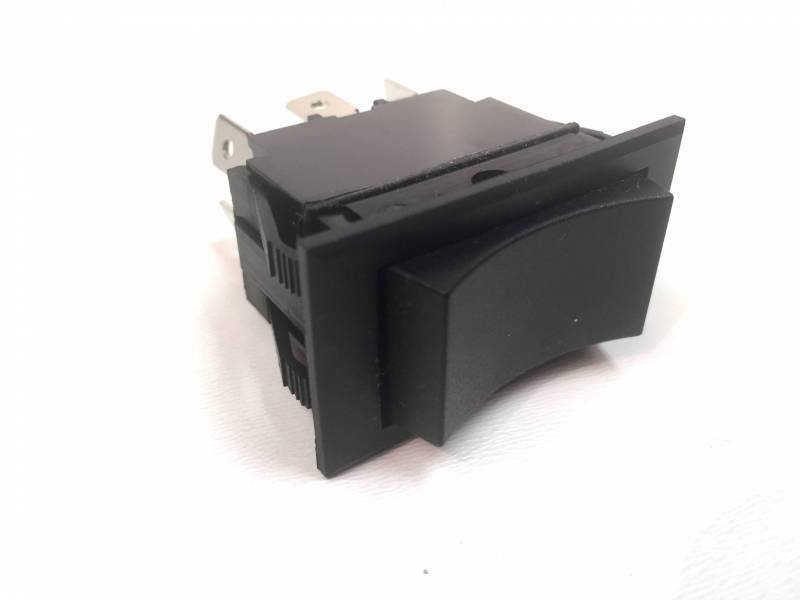

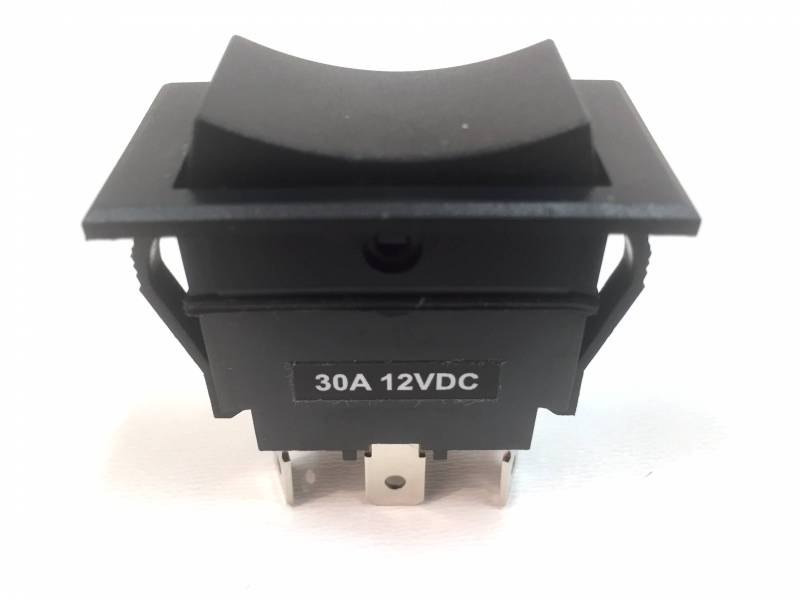

New power window switch for rear tailgate glass. Switch has 6 terminals, only top or bottom 3 will be used. Will not accept stock harness pigtail, individual wires with blade terminals will be used to make connection.

NOTE: The original 3 terminal switch is no longer available. The new switch provided has 6 terminals, only the top 3 or bottom 3 terminals will be used. After you unplug the original harness from the original switch you will need to remove the 3 wires with blade terminals from the original plastic connector. If you look into the front of the connector, each blade terminal has a tang on it. This tang will need to be depressed with a small screwdriver so the wire with blade terminal can be pulled out the back of the plastic connector. The plastic connector will not be used with the new switch. Plug your 3 wires individually into the new switch using either the top 3 or bottom 3 terminals keeping the sequence the same as original. Right wire on right, middle on middle and left on left.


  • New


Shipping Information

  • Item Requires Shipping
  • 0.5 lbs.
  • W2.0000” x H0.5000” x L2.0000”

Customer Reviews

Comment Total Reviews (1)

  • Currently 5/5 Stars

Reviewed by:

Product ownership: Less than 1 week

Purchased from: Motor City K5

I was very pleased to find the install to go especially well. Clipped the three wires off the switch, added the wire connectors, then connected them to the switch (red wire on center post). I took the time to put electrical wrap around the contacts and it fits perfectly in the original opening.
