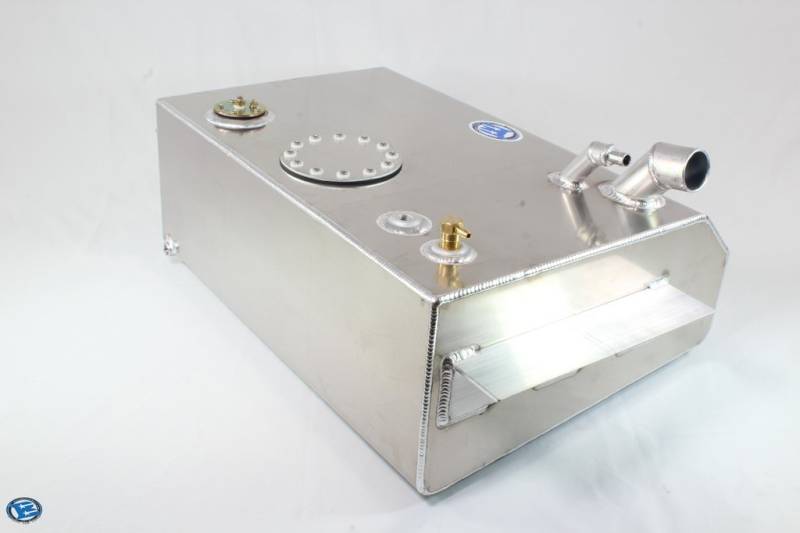

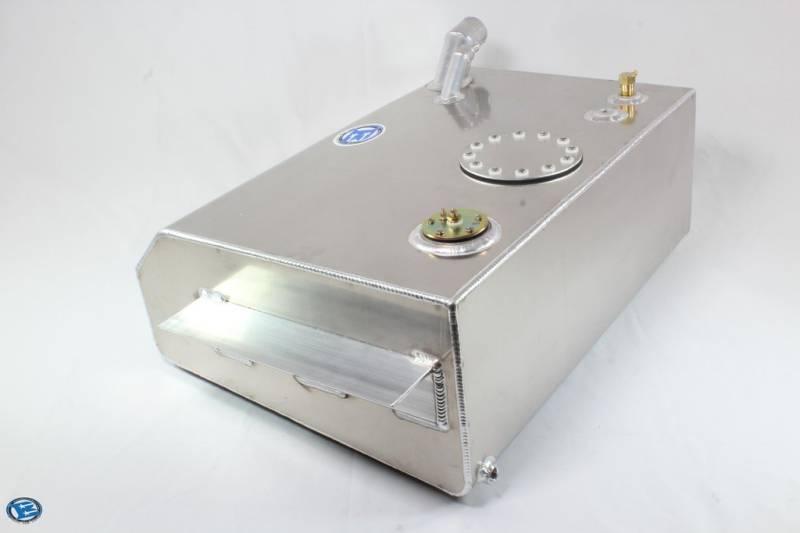

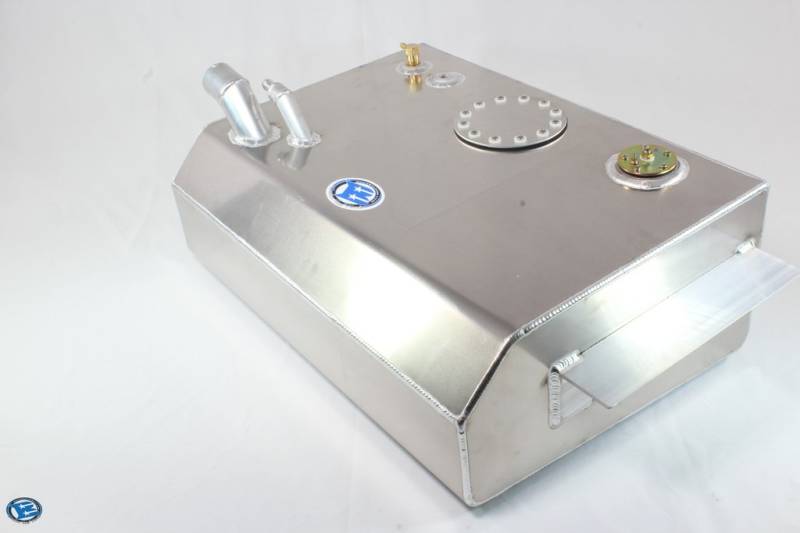

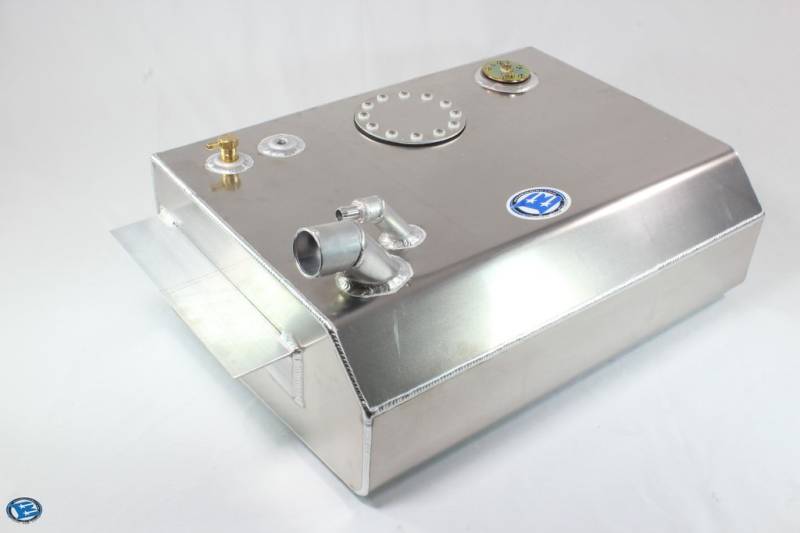

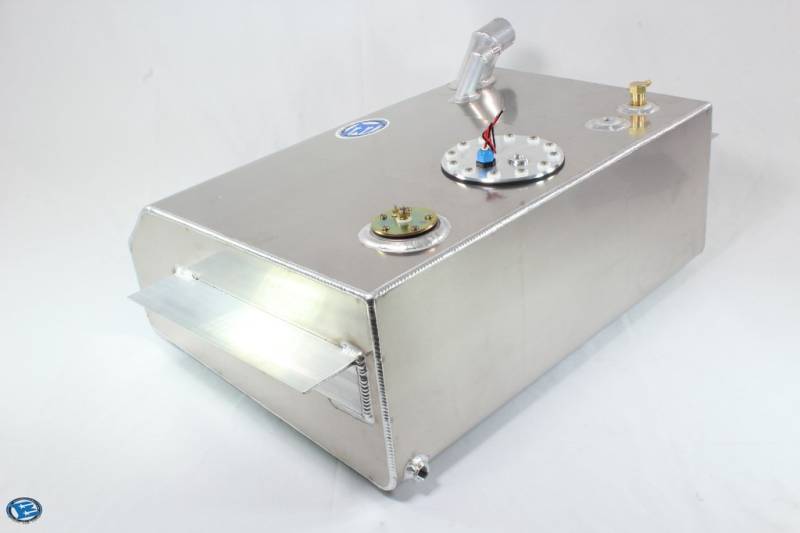

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
*Please Note: Tanks are custom made to order and typically take 30 days to receive.
-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- 2" OD Ribbed for hose Side Fill
-5/8" OD Barb Fill Neck Vent
- 1/2" NPT Vent
- 3/8" NPT Return
-3/8" NPT Draw
- 3 Baffles
-Approx 19 Gallons
- This tank is a NON-EFI but we have constructed the tank so that you can upgrade to our in-tank EFI system in the future.
*** Original fuel tank filler neck mounted to inner 1/4 panel must have the last bend closest to the fuel tank cut off. This will allow you to run a 1.5" ID straight rubber fuel hose from filler neck on truck to fuel neck on tank. ***
